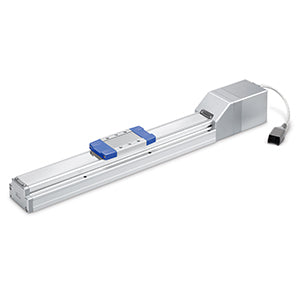

High Rigidity and High Precision - LEKFS | LEKFS32EA-50-R5CP18

Optimal for standard applications

Features

• Body size: 16, 25, 32 and 40 mm
• Stroke: 50 to 1200 mm
• Acceleration: up to 3000 mm/s²
• Speed: up to 1200 mm/s
• Step motor type
• Compatible encoder: battery-less absolute.

Specifications

• Part number: LEKFS32EA-50-R5CP18
• Controller Mounting: 8 (DIN Rail Mounting)
• Series: LEKFS
• Stroke: 50
• Seal Band Stopper: Standard
• Motor Mounting Position: In-line
• Size: 32
• Motor Type: E (Battery-less absolute, 24VDC)
• Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
• Motor Option: Without Option
• Communication Plug Connector, I/O Cable: None
• Actuator Cable Type, Length: R5 (5)
• Controller: CP1 (PROFINET)

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Installation manual
• CE certificate
