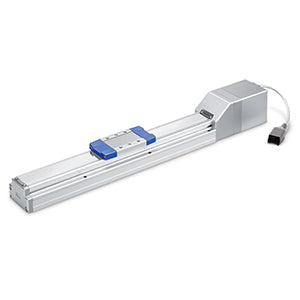

SMC · Slider Types
LEKFS25EA-400-R5C918
excl. VAT · €2.431,76 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEKFS25EA-400-R5C918 |
|---|
Optimal for standard applications
Features
- Body size: 16, 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- Acceleration: up to 3000 mm/s²
- Speed: up to 1200 mm/s
- Step motor type
- Compatible encoder: battery-less absolute.
Specifications
- Part number: LEKFS25EA-400-R5C918
- Article no.: 02454631
- Controller Mounting: 8 (DIN Rail Mounting)
- Series: LEKFS
- Stroke: 400
- Seal Band Stopper: Standard
- Motor Mounting Position: In-line
- Size: 25
- Motor Type: E (Battery-less absolute, 24VDC)
- Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Motor Option: Without Option
- Communication Plug Connector, I/O Cable: None
- Actuator Cable Type, Length: R5 (5)
- Controller: C91 (EtherNet/IP™)
- Lead time: 28 days
- Country of origin: JP
