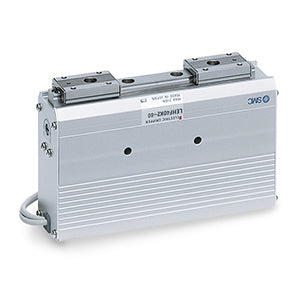

SMC · Grippers & EOAT for Collaborative Robots
LEHF32EK2-32-R5C918
excl. VAT · €2.554,15 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEHF32EK2-32-R5C918 |
|---|
Soft handling, safe handling
Features
- Body size: 32 and 40 mm.
- Manual override adjustment screw on both sides (for opening and closing fingers when power supply is turned off).
- Optional controller.
Specifications
- Part number: LEHF32EK2-32-R5C918
- Article no.: 02419879
- Mounting: 8 (DIN Rail)
- Stroke: 32mm (Basic)
- Size: 32
- Actuator Cable type: R5 (5m)
- Communication Plug Connector, I/O Cable: None
- Controller: C91 (EtherNet/IP™)
- Motor Cable Entry: Basic, Entry Right Side
- Lead time: 28 days
- Country of origin: JP
Documents
More part numbers in this series
LEHF10K2-16-R5C6185€1.559,07LEHF10K2-16-R5C918€1.864,63LEHF10K2-16-R5C9F8€1.926,11LEHF10K2-16-R5CE18€1.870,08LEHF10K2-16-R5CEF8€1.931,02LEHF10K2-16-R5CL18€1.684,50LEHF10K2-16-R5CLF8€1.726,90LEHF10K2-16-R5CP18€1.891,89LEHF10K2-16-R5CPF8€1.952,62LEHF10K2-32-R5C6185€1.688,73LEHF10K2-32-R5C918€1.994,26LEHF10K2-32-R5C9F8€2.055,74LEHF10K2-32-R5CE18€1.999,70LEHF10K2-32-R5CEF8€2.060,65LEHF10K2-32-R5CL18€1.814,13
