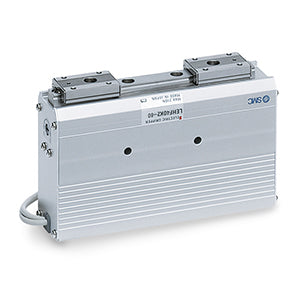

SMC · Grippers & EOAT for Collaborative Robots
LEHF20K2-24-R5C918
excl. VAT · €2.299,82 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEHF20K2-24-R5C918 |
|---|
Soft handling, safe handling
Features
- Body size: 10, 20, 32 and 40 mm.
- Manual override adjustment screw on both sides (for opening and closing fingers when power supply is turned off).
- Optional controller.
Specifications
- Part number: LEHF20K2-24-R5C918
- Article no.: 01474377
- Controller Mounting: 8 (DIN Rail)
- Stroke: 24mm
- Suffix: 1 (For Single Axis)
- Body Size: 20
- I/O cabling for LEC controllers: Without Cable
- Controller: C (JXC, Step Motor Controller)
- Protocol: 9 (EtherNet/IP)
- Actuator Cable Length: 5 (5m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O cabling for JXC Controllers & communication plug connector: None
- Motor Cable Entry: Basic, Entry on the Right Side
- Lead time: 21 days
- Country of origin: JP
Documents
More part numbers in this series
LEHF10K2-16-R5C6185€1.559,07LEHF10K2-16-R5C918€1.864,63LEHF10K2-16-R5C9F8€1.926,11LEHF10K2-16-R5CE18€1.870,08LEHF10K2-16-R5CEF8€1.931,02LEHF10K2-16-R5CL18€1.684,50LEHF10K2-16-R5CLF8€1.726,90LEHF10K2-16-R5CP18€1.891,89LEHF10K2-16-R5CPF8€1.952,62LEHF10K2-32-R5C6185€1.688,73LEHF10K2-32-R5C918€1.994,26LEHF10K2-32-R5C9F8€2.055,74LEHF10K2-32-R5CE18€1.999,70LEHF10K2-32-R5CEF8€2.060,65LEHF10K2-32-R5CL18€1.814,13
