SMC · Slider Types

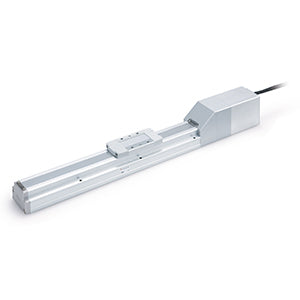

LEFS40T8A-900-R59D21
excl. VAT · €4.675,25 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | LEFS40T8A-900-R59D21 |
|---|
For positioning or transfer applications demanding precision, high speed and low maintenance.
Features
- Body size: 25, 32 and 40 mm
- Stroke: 50 to 1200 mm
- AC Servo Motor, 100/200/400W.
Specifications
- Part number: LEFS40T8A-900-R59D21
- Stroke: 900 mm
- AC Servo Motor: T8 (400W Output, Absolute Encoder, LECSB/C/S)
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: In-line
- Size: 40 mm
- Motor Option: w/o Lock
- Driver: 9D2 (LECSND2-T-9/EtherNet/IP™, 200V to 240V)
- Positioning Pin Hole: Housing B Bottom
- Actuator Cable Length: 5 (5 m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O Connector: 1 (1.5 m)
- Accuracy: Basic Type
- Seal Band Stopper: Standard
- Lead Screw: A (Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
