SMC · Slider Types

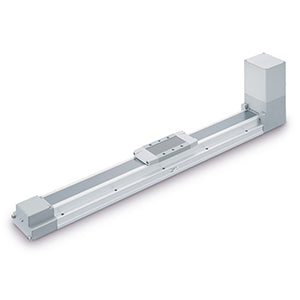

LEFB40T8S-1500-R59D21
excl. VAT · €5.294,39 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEFB40T8S-1500-R59D21 |
|---|
Suitable for easy transfer or positioning in standard applicationsBody size: 25, 32, 40Stroke: 300 to 3000 mmCompatible encoders: absolute, incrementalAC servo motorHorizontal work load: up to 25 kgSpeed: 2000 mm/sAcceleration: up to 20000 mm/s².
Features
- Body size: 25, 32 and 40 mm
- Stroke: 300 to 3000 mm.
Specifications
- Part number: LEFB40T8S-1500-R59D21
- I/O Connector: 1 (1.5 m)
- Stroke: 1500 mm
- AC Servo Motor: T8 (400W Output, Absolute Encoder, LECSS2)
- Auto Switch Mounting Bracket: None
- Motor Mounting Position: Top Mounting Type
- Size: 40
- Cable length: 5 (5m)
- Motor Option: None
- Driver: 9D2 (LECSND2-T-9/EtherNet/IP™, 200V to 240V)
- Positioning Pin Hole: Housing B Bottom
- Actuator Cable: R (Robotic Flexible Cable)
Documents
More part numbers in this series
LEFB32T7S-1000-R59D21€3.741,27LEFB32T7S-1000-R5ED21€3.769,92LEFB32T7S-1000-R5PD21€3.741,29LEFB32T7S-1200-R59D21€3.813,87LEFB32T7S-1200-R5ED21€3.842,50LEFB32T7S-1200-R5PD21€3.813,87LEFB32T7S-1500-R59D21€3.922,78LEFB32T7S-1500-R5ED21€3.951,40LEFB32T7S-1500-R5PD21€3.922,78LEFB32T7S-2000-R59D21€4.104,24LEFB32T7S-2000-R5ED21€4.132,87LEFB32T7S-2000-R5PD21€4.104,24LEFB32T7S-2500-R59D21€4.285,77LEFB32T7S-2500-R5ED21€4.314,40LEFB32T7S-2500-R5PD21€4.285,77
