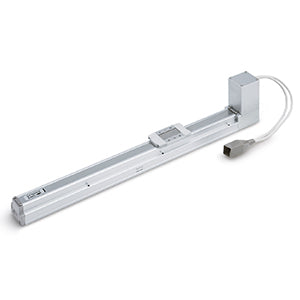

Battery-less Absolute Encoder Type - LEFB | LEFB32ET-2000-R5CEF8

Suitable for easy transfer or positioning in standard applications.

Features

• Body size: 16, 25 and 32 mm
• Stroke: 300 to 2000 mm
• Step motor type.

Specifications

• Part number: LEFB32ET-2000-R5CEF8
• Stroke: 2000 mm
• Size: 32
• Motor Option: Without Option
• Actuator Cable Type, Length: R5 (5m)
• Positioning Pin Hole: Housing B Bottom
• Controller: CEF (EtherCAT® with STO Sub-Function)
• Auto Switch Compatibility: None
• Mounting: 8 (DIN Rail)
• Series: LEFB
• Grease Application: With
• Motor Type: E (Battery-less absolute, 24VDC)
• Lead: T (48mm)
• Communication Plug Connector, I/O Cable: None

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
• Installation manual
• Installation manual 2
