SMC · Slider Types

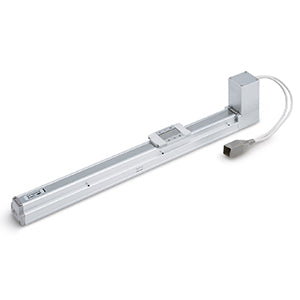

LEFB25T-700-R5CEF8
excl. VAT · €2.208,30 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | LEFB25T-700-R5CEF8 |
|---|
Suitable for easy transfer or positioning in standard applications.
Features
- Body size: 16, 25 and 32 mm.
- Stroke: 300 to 2000 mm.
- Step and servo motor types.
Specifications
- Part number: LEFB25T-700-R5CEF8
- Stroke: 700 mm
- Auto Switch Mounting Bracket: None
- Motor: Step Motor (Servo 24 VDC)
- Size: 25
- Motor Option: w/o Lock
- I/O cabling for LEC controllers: Without Cable
- Positioning Pin Hole: Housing B Bottom
- Controller: C (JXC, Step Motor Controller)
- Actuator Cable Length: 5 (5m)
- Actuator Cable: R (Robotic Flexible Cable)
- I/O cabling for JXC Controllers & communication plug connector: None
- Controller Mounting: 8 (DIN Rail)
- Seal Band Stopper: Standard
- Suffix: F (With STO Sub-Function)
- Protocol: E (EtherCAT®)
