SMC · Fittings

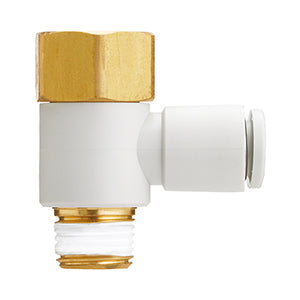

KQ2VF04-M5A
excl. VAT · €6,26 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | KQ2VF04-M5A |
|---|---|
| Applicable Tube O.D. | ø 4 |
| Port Size | M5 x 0.8 |
| Thread Material /<br>Surface Treatment | A (Brass) |
| Sealant | None (Except for Port Sizes |
| Release Button | Round Type |
| Lead time (days) | 5 |
| Minimum order quantity | 10 |
| Country of origin | SG |
| TARIC code | 3917400099 |
- One-touch fitting, a general purpose PBT material
- Applicable tubing from Ø 2 to Ø 16
- Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
- Operating pressure range: -100 kPa to 1 MPa
- Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
- With sealant.
Key features
- Universal female elbow.
- Applicable Tubing O.D.: ø4, ø6, ø8, ø10, ø12, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
- Applicable Port Size: M5, 1/8, 1/4, 3/8, 1/2, 10-32 UNF.
