SMC · Fittings

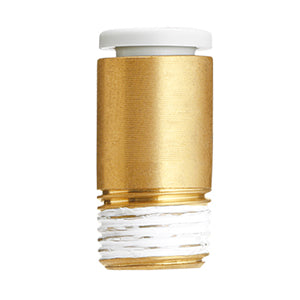

KQ2S12-G02G
excl. VAT · €29,00 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
Specs
| Fluid | Air, water (general industrial water) |
|---|---|
| Operating pressure | –100 kPa (vacuum) to 1.0 MPa |
| Proof pressure | 3.0 MPa |
| Temperature (ambient and fluid) | –5 to 60 °C |
| Temperature, water | 0 to 40 °C |
| Part number | KQ2S12-G02G |
|---|---|
| one-touch fitting | |
| hexagon socket head male connector | |
| push-in Ø12 | |
| thread G1/4 | |
| stainless steel | |
| Country of origin | SG |
| TARIC code | 7307291090 |
Hexagon Socket Head Male Connector - KQ2S
Key features
- Hexagon socket head male connector. Applicable Tubing O.D.: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2. Applicable Port Size: M3, M5, M6, 1/8, 1/4, 3/8, 1/2, 1/16, 10-32 UNF.
