SMC · Fittings

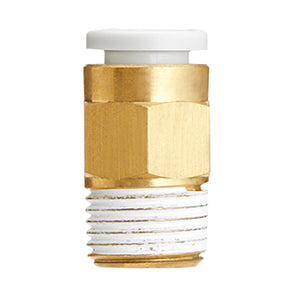

KQ2H04-M3G
excl. VAT · €2,90 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Next-business-day delivery in Bulgaria for in-stock parts
In stock
Need volume pricing or a special version? Request a quote →
| Part number | KQ2H04-M3G |
|---|---|
| Sealant | None (Except for Port Sizes: G- is always Face Seal / M & UNI- is always Gasket Seal) |
| Release Button | Round Type |
| Port Size | M3 x 0.5 |
| Applicable Tube O.D. | ø 4 |
| Thread Material /<br>Surface Treatment | G (Stainless Steel 303) |
| Lead time (days) | 16 |
| Minimum order quantity | 10 |
| Country of origin | SG |
| TARIC code | 7412200000 |
- One-touch fitting, a general purpose PBT material
- Applicable tubing from Ø 2 to Ø 16
- Threads, sizes: M, R, Rc, G, NPT, UNF, UNI from M3 to 1/2
- Operating pressure range: -100 kPa to 1 MPa
- Fluid temperature: -5 to 60 °C, water: 0 to 40 °C
- With sealant.
Key features
- Male Connector.
- Applicable Tubing O.D.: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
- Applicable Port Size: M3, M5, M6, 1/8, 1/4, 3/8, 1/2, 1/16, 10-32 UNF.
