SMC · Fittings
KQ2H04-01NS1
excl. VAT · €2,56 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery time: On request
Need volume pricing or a special version? Request a quote →
Total
Specs
| Fluid | Air, water (general industrial water) |
|---|---|
| Operating pressure | –100 kPa (vacuum) to 1.0 MPa |
| Proof pressure | 3.0 MPa |
| Temperature (ambient and fluid) | –5 to 60 °C |
| Temperature, water | 0 to 40 °C |
| Part number | KQ2H04-01NS1 |
|---|---|
| one-touch fitting | |
| male connector | |
| push-in dia4 | |
| thread R1/8 | |
| with sealant (PTFE) | |
| brass nickel plated | |
| oval release button | |
| Country of origin | SG |
| TARIC code | 7412200000 |

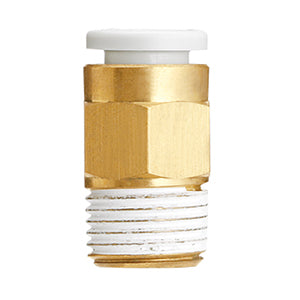

Male Connector - KQ2H
Key features
- Male Connector.
- Applicable Tubing O.D.: ø2, ø3.2, ø4, ø6, ø8, ø10, ø12, ø16, ø1/8, ø5/32, ø3/16, ø1/4, ø5/16, ø3/8, ø1/2.
- Applicable Port Size: M3, M5, M6, 1/8, 1/4, 3/8, 1/2, 1/16, 10-32 UNF.
