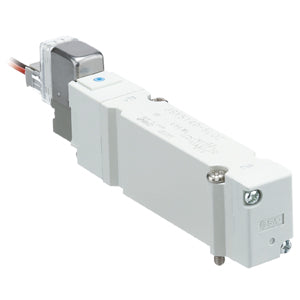

JSY5*40, 5 Port Solenoid Valve, Non Plug-in | JSY5B40-5LOZ

5 PORT SOLENOID VALVE

Features

• Fluid: Air.
• Coil rated voltage: 24VDC.
• Operating pressure range: Up to 0.7 MPa.
• Ambient & fluid temperature: -10 to 50°C.
• Enclosure: Up to IP67.

Specifications

• Part number: JSY5B40-5LOZ
• Item number: 02061465
• Electrical Entry: LO (L Plug w/o Connector)
• Light/Surge Voltage Suppressor: Z (With light/surge voltage suppressor)
• Pilot Type: Internal Pilot
• Actuation: B (4 Position Dual 3 Port Valve N.O./N.O.)
• Manual Override: Non-locking Push Type
• Power saving Circuit: None
• Lead time: 33 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
