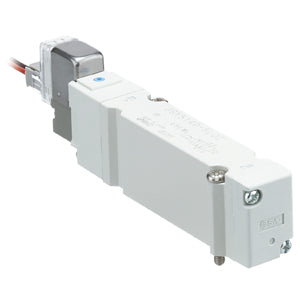

5 PORT SOLENOID VALVE
Features
- Fluid: Air.
- Coil rated voltage: 24VDC.
- Operating pressure range: Up to 0.7 MPa.
- Ambient & fluid temperature: -10 to 50°C.
- Enclosure: Up to IP67.
Specifications
- Part number: JSY5240-5LOZ
- Item number: 02061393
- Electrical Entry: LO (L Plug w/o Connector)
- Light/Surge Voltage Suppressor: Z (With light/surge voltage suppressor)
- Pilot Type: Internal Pilot
- Actuation: 2 (2 Position Double)
- Manual Override: Non-locking Push Type
- Power saving Circuit: None
- Lead time: 33 days
- Country of origin: JP
