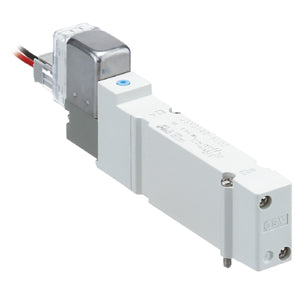

JSY3*40, 5 Port Solenoid Valve, Non Plug-in | JSY3140-5LOZ

5 PORT SOLENOID VALVE

Features

• Fluid: Air.
• Coil rated voltage: 24VDC.
• Operating pressure range: Up to 0.7 MPa.
• Ambient & fluid temperature: -10 to 50°C.
• Enclosure: Up to IP67.

Specifications

• Part number: JSY3140-5LOZ
• Item number: 02058177
• Electrical Entry: LO (L Plug w/o Connector)
• Pilot Type: Internal Pilot
• Actuation: 1 (2 Position Single)
• Manual Override: Non-locking Push Type
• Power saving Circuit: None
• Lead time: 16 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
