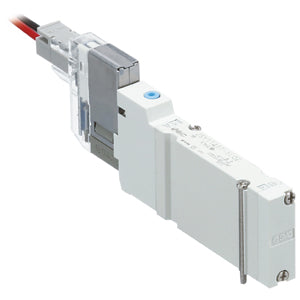

JSY1*40, 5 Port Solenoid Valve, Non Plug-in | JSY1C40T-5LOZ

TIE ROD

Features

• Fluid: Air.
• Coil rated voltage: 24VDC.
• Operating pressure range: Up to 0.7 MPa.
• Ambient & fluid temperature: -10 to 50°C.
• Enclosure: Up to IP40.

Specifications

• Part number: JSY1C40T-5LOZ
• Item number: 01851323
• Electrical Entry: LO (L Plug w/o Connector)
• Pilot Type: Internal Pilot
• Actuation: C (4 Position Dual 3 Port Valve N.C./N.O)
• Manual Override: Non-locking Push Type
• Lead time: 33 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Operation manual
