SMC · Pilot Operated 4/5 Port Solenoid Valves
JSY1120T-5LZ-M5-PE
excl. VAT · €78,25 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JSY1120T-5LZ-M5-PE |
|---|

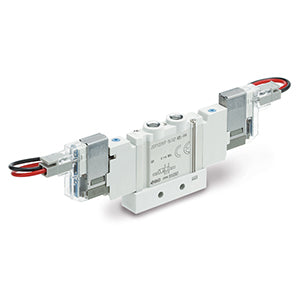

5 PORT SOLENOID VALVE
Features
- Top-ported
- High flow rate: 173 l/min
- Can drive Ø 32 bore cylinders
- Valve width 6.4 mm
- Power consumption: 0.2 W.
Specifications
- Part number: JSY1120T-5LZ-M5-PE
- Item number: 02273364
- Electrical Entry: L (L Plug Connector w/Lead Wire 0.3 M)
- Port Size: M5 (M5 x 0.8)
- Actuation: 1 (2 Position Single)
- Light/Surge Suppressor/Common Specification: Z (w/Light & Surge Voltage Suppressor, Positive Common)
- Manual Override: Non-locking Push Type
- Power saving Circuit: T (With power saving circuit)
- Lead time: 33 days
- Country of origin: JP
