SMC · Process Valves

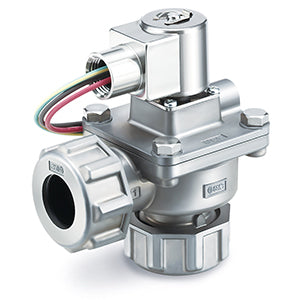

JSXFH4-06F3-5DSB
excl. VAT · €180,38 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JSXFH4-06F3-5DSB |
|---|---|
| Piping | H (Immersion Type) |
| Tank Size | 4 (4 inch) |
| Port Size | 06 [3/4 (20A)] |
| Thread Type | F (G) |
| OUT Port Piping | 3 (Pipe Projection: Short; Thread Type: G) |
| Rated voltage | 5 (24 VDC) |
| Electrical Entry | DS (DIN Terminal w/Surge Voltage Suppressor) |
| Silencer | w/o Silencer |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Solenoid type / Air operated type / SMARTVENT Type pulse valve
- Applicable fluid: air
- Port size: 3/4" to 2"
- High-peak pressure and low air consumption
- Long service life: 10 million cycles
- Fast response time
- Easier maintenance: springless diaphragm.
Key features
- Applicable fluid: air
- Port size: 3/4" to 2"
- High-peak pressure and low air consumption
- Long service life: 10 million cycles
- Fast response time
- Easier maintenance: springless diaphragm.
