SMC · Linear Actuators

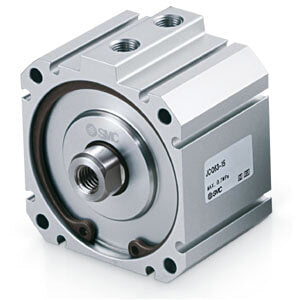

JCQ50-30
excl. VAT · €82,90 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JCQ50-30 |
|---|---|
| Mounting | Through-hole (Standard) |
| Bore Size | 50 mm |
| Stroke | 30 mm |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Magnet | None |
| Auto Switch | No Switch |
| Port Thread Type | M thread: ø12 to ø40, Rc: 50 to 100 |
| Lead time (days) | 22 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8412310090 |
- Double acting, single rod, compact cylinder.
- Lightweight 25 g (ø12 stroke 5).
- Bore sizes (mm): 12 ~ 100.
- Strokes up to 50 mm.
- Bumper cushion.
- Auto switches can be mounted on 4 surfaces.
Key features
- Double acting, single rod, compact cylinder.
- Lightweight 25 g (ø12 stroke 5).
- Bore sizes (mm): 12 ~ 100.
- Strokes up to 50 mm.
- Bumper cushion.
- Auto switches can be mounted on 4 surfaces.
