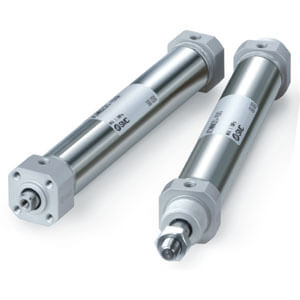

- Round Air Cylinder, Double Acting, Single Rod.
- Compact and Lightweight.
- Bore sizes (mm): 20, 25, 32 and 40.
- Strokes up to 300 mm.
- Direct mounting on both covers is possible.
- Male and female rod ends available.
- Bumper cushion.
Key features
- Round Air Cylinder, Double Acting, Single Rod.
- Compact and Lightweight.
- Bore sizes (mm): 20, 25, 32 and 40.
- Strokes up to 300 mm.
- Direct mounting on both covers is possible.
- Male and female rod ends available.
- Bumper cushion.
Specifications
- Mounting: B [Basic (Female thread on both covers)]
- Bore Size: 32 mm
- Mounting Nut: None
- Stroke: 125
- Rod End Thread: F (Female Thread)
- Lead Wire or Prewired Connector: 0.5m (Or None in the Case of No Switch)
- Number: 2 pcs. (Or None in the Case of No Switch)
- Magnet: D (Built-in Magnet)
- Auto Switch: No Switch
- Port Thread Type: M5
Additional information
- Part number: JCDMB32-125F
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8412310090
