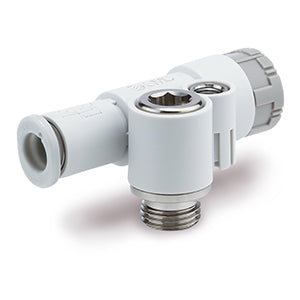

Metric size - JASV – JASV-LEA04-M3

• Port Size: M3, M5, 10-32 UNF, 1/8
• Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
• Operating Pressure Range: 0.1 to 0.7 MPa.

Key features

• Port Size: M3, M5, 10-32 UNF, 1/8
• Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm
• Operating Pressure Range: 0.1 to 0.7 MPa.

Specifications

• Stud Position: A (Right Side)
• Applicable Tubing O.D.: 04 (ø4)
• Thread Type: R (or Metric)
• Port Size: M3 (M3 x 0.5)
• Seal Method: Without sealant

Additional information

• Part number: JASV-LEA04-M3
• Lead time (days): 20
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8481209090

Documents

• Catalogue (PDF)
• CAD model
