- Port Size: M3, M5, 10-32 UNF, 1/8
- Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
- Operating Pressure Range: 0.1 to 0.7 MPa.
Key features
- Port Size: M3, M5, 10-32 UNF, 1/8
- Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm
- Operating Pressure Range: 0.1 to 0.7 MPa.
Specifications
- Stud Position: A (Right Side)
- Applicable Tubing O.D.: 04 (ø4)
- Thread Type: G (G)
- Port Size: 01 (1/8)
- Seal Method: Without sealant
Additional information

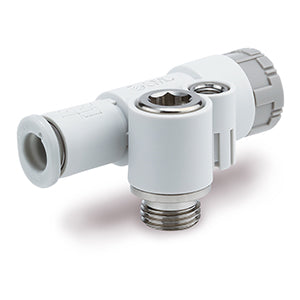

- Part number: JASV-LEA04-G01
- Lead time (days): 20
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
