SMC · Flow Control Equipment
JAS-SLEA06-G01
excl. VAT · €28,96 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | JAS-SLEA06-G01 |
|---|---|
| Stud Position | A (Right Side) |
| Control Method | E (Meter-out) |
| Port Size | G01 (G1/8) |
| Seal Method | w/o Sealant |
| Applicable tubing O.D. | 06 (ø6) |
| Lead time (days) | 33 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |

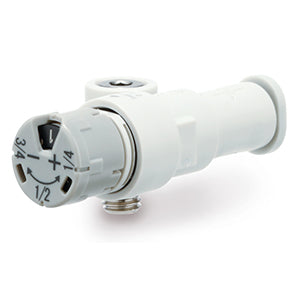

- Compact speed controller with one-touch fitting
- Push-lock type
- Manual adjustment or with flat-blade screwdriver
- Right and left stud orientation available
- Locked and unlocked condition is visible with orange mark.
Key features
- Port Size: M3, M5, 10-32 UNF, 1/8
- Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
- Operating Pressure Range: 0.05 to 0.7 MPa.
