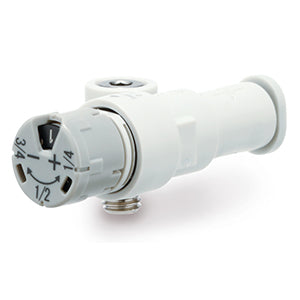

- Compact speed controller with one-touch fitting
- Push-lock type
- Manual adjustment or with flat-blade screwdriver
- Right and left stud orientation available
- Locked and unlocked condition is visible with orange mark.
Key features
- Port Size: M3, M5, 10-32 UNF, 1/8
- Applicable Tubing O.D.: Ø 3.2 to Ø 6 mm and Ø 1/8" to Ø 1/4"
- Operating Pressure Range: 0.05 to 0.7 MPa.
Specifications
- Control Method: E (Meter-out)
- Stud Position: A (Right Side)
- Applicable tubing O.D.: 04 (ø4)
- Port Size: G01 (G1/8)
- Seal Method: w/o Sealant
Additional information
- Part number: JAS-SLEA04-G01
- Lead time (days): 28
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8481209090
