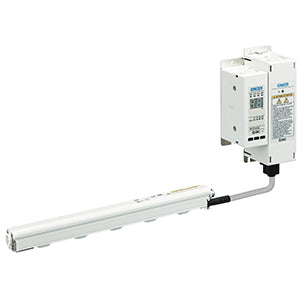

SMC · Bar Ionizers
IZT41-58D36HRP-3BU
excl. VAT · €2.131,61 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | IZT41-58D36HRP-3BU |
|---|---|
| Input, Output Specification | P (PNP) |
| Emmiter Cartridge, Material | D (High Speed De-ionizing Cartridge, Tungsten) |
| High-voltage Cable Length | 3 (3m) |
| Model | 41 (AC) |
| DIN Rail Bracket for Controller & <br>High-voltage Power Supply | U (Controller: Included; High-voltage Power Supply: Included) |
| Bar Bracket | B (w/Bracket 1) |
| Option | Standard |
| One-touch fitting | 6H (ø6 Straight) |
| Plug Position | R (Opposite Side of High-voltage Cable) |
| Power Supply Cable Length | 3 (3m) |
| Communication Cable Entry Direction/Length | None |
| Bar Length | 58 (580mm) |
| Lead time (days) | 31 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8543709099 |
- IZT40: Basic type / IZT41: AC type / IZT42: Dual AC type
- IZT41/IZT42: Compatible with IO-Link
- Potential amplitude: As low as 25 V or less
- Rapid neutralisation of static electricity: As fast as 0.1 s
- Compact: Height 37 mm x Width 30 mm
- One controller can control a maximum of 4 ionizers
- Monitor and operate bars which are installed in an inaccessible location
- Multiple alarms & functions.
Key features
- IZT40: Basic type / IZT41: AC type / IZT42: Dual AC type
- IZT41/IZT42: Compatible with IO-Link
- Potential amplitude: As low as 25 V or less
- Rapid neutralisation of static electricity: As fast as 0.1 s
- Compact: Height 37 mm x Width 30 mm
- One controller can control a maximum of 4 ionizers
- Monitor and operate bars which are installed in an inaccessible location
- Multiple alarms & functions.
More part numbers in this series
IZT40-112D3AHR-3BU€1.714,39IZT40-130D3AHR-3BU€1.803,48IZT40-160D3AHR-3BU€1.944,89IZT40-16D36HR-3BU€1.288,19IZT40-190D3AH-3BU€2.194,82IZT40-22D36HR-3BU€1.297,88IZT40-232D3AH-3BU€2.568,68IZT40-250D3AH-3BU€3.103,34IZT40-34D36HR-3BU€1.326,92IZT40-40D36HR-3BU€1.365,69IZT40-46D36HR-3BU€1.414,07IZT40-58D36HR-3BU€1.447,05IZT40-64D38HR-3BU€1.460,59IZT40-82D38HR-3BU€1.574,90IZT41-112D3AHRL-JJBU€2.258,87
