SMC · Electro-Pneumatic Control Equipment

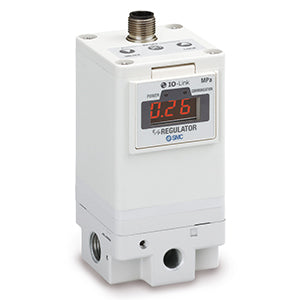

ITV3030-03F2N
excl. VAT · €740,87 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ITV3030-03F2N |
|---|
ELECTRO-PNEUMATIC REGULATOR
Regulate your pressure up to 0.9 MPa with different communication models availableEnclosure: IP65Integrated LED displayPower consumption: 4 W or lessCommunication models: IO-Link, analogue (current and voltage), digital signals, preset input, PROFINET, CC-Link, DeviceNet™, PROFIBUS DP, RS-232CMaximum flow rate: up to 4400 l/minCompatible with AC-D seriesPlug-in manifold type available.
Features
- Pressure range: 0.005 to 0.9 MPa
- Maximum flow rate: 4000 l/min (ANR)
- Port sizes: 1/8, 1/4, 3/8, 1/2
- Applicable fieldbus protocols: IO-Link, CC-Link, DeviceNet™, PROFIBUS, RS-232C.
Specifications
- Part number: ITV3030-03F2N
- Item number: 01084088
- Model: 30 (4000 L/min)
- Pressure Range: 3 (0.005~0.5 MPa)
- Power Voltage: 0 (24VDC)
- Input Signal: 0 (Current Style 4~20mADC; Requires Sourcing Type PLC Input Module)
- Monitor Output: 3 (Switch Output PNP)
- Thread: F (G[PF])
- Port Size: 2 (1/4 [2000,3000])
- Accessory: None
- Cable Connector: N (w/oCable Connector)
- Pressure Display Unit: MPa
- Options: None
- Lead time: 27 days
- Country of origin: JP
