SMC · Electro-Pneumatic Control Equipment
ITV1050-ILF2N
excl. VAT · €624,78 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ITV1050-ILF2N |
|---|

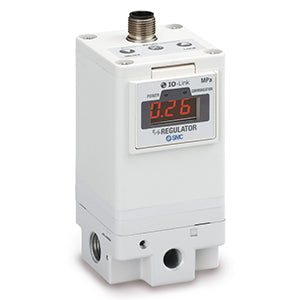

ELECTRO-PNEUMATIC REGULATOR
Regulate your pressure up to 1.0 MPa with different communication models availableEnclosure: IP65Integrated LED displayPower consumption: 4 W or lessCommunication models: IO-Link, analogue (current and voltage), digital signals, preset input, CC-Link, DeviceNet™, PROFIBUS DP, RS-232CMaximum flow rate: up to 4000 l/min.
Features
- Pressure range: 0.005 to 0.9 MPa
- Maximum flow rate: 4000 l/min (ANR)
- Port sizes: 1/8, 1/4, 3/8, 1/2
- Applicable fieldbus protocols: IO-Link, CC-Link, DeviceNet™, PROFIBUS, RS-232C.
Specifications
- Part number: ITV1050-ILF2N
- Item number: 02216716
- Input Signal: IL (I/O-Link)
- Options: None
- Accessory: None
- Pressure Range: 5 (0.005~0.9MPa)
- Pressure Display Unit: MPa
- Port Size: 2 (1/4 [2000,3000])
- Model: 10 (200 L/min [ANR])
- Power Voltage: 0 (24VDC)
- Monitor Output: None
- Thread: F (G[PF])
- Cable Connector: N (w/oCable Connector)
- Lead time: 3 days
- Country of origin: JP
