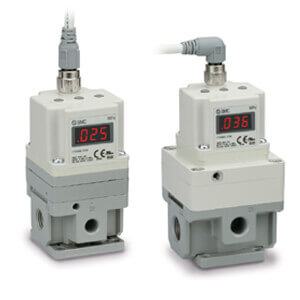

ITV1000/2000/3000, Electro-Pneumatic Regulator | ITV1010-04F2N

ELECTRO-PNEUMATIC REGULATOR

Compact and lightweight Enclosure: IP65 Integrated LED display Power consumption: 4 W or less Communication models: IO-Link, analogue (current and voltage), digital signals, preset input, CC-Link, DeviceNet™, PROFIBUS DP, RS-232C.

Features

• Pressure range: 0.005 to 0.9 MPa
• Maximum flow rate: 4000 l/min (ANR)
• Port sizes: 1/8, 1/4, 3/8, 1/2
• Applicable fieldbus protocols: IO-Link, CC-Link, DeviceNet™, PROFIBUS, RS-232C.

Specifications

• Part number: ITV1010-04F2N
• Item number: 01080828
• Model: 10 (200 L/min [ANR])
• Pressure Range: 1 (0.005~0.1MPa)
• Power Voltage: 0 (24VDC)
• Input Signal: 0 (Current Style 4~20mADC
• Requires Sourcing Type PLC Input Module):
• Monitor Output: 4 [Analogue Output 4~20mA (Sink type/+COM type), for option -X256
• Thread: F (G[PF])
• Port Size: 2 (1/4 [2000,3000])
• Accessory: None
• Cable Connector: N (w/oCable Connector)
• Pressure Display Unit: MPa
• Options: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Operation manual 2
• Operation manual 3
• Operation manual 4
• Operation manual 5
• Operation manual 6
• Operation manual 7
• Operation manual 8
• Installation manual
• Installation manual 2
• Installation manual 3
• Installation manual 4
