SMC · Pressure Sensors

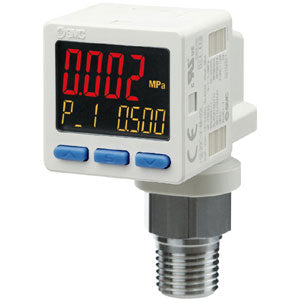

ISE20C-T-02L-W
excl. VAT · €338,88 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | ISE20C-T-02L-W |
|---|---|
| Output Specification | T (PNP Open Collector 2 Outputs + Analogue Voltage Output) |
| Series | ISE20 |
| Rated pressure range | C (-0.1 to 1 MPa) |
| Bracket | None |
| Piping Specification | 02 [R1/4, (M5, Female Threaded)] |
| Unit Specification | w/Unit Selection Function |
| Piping Direction | L (Bottom Ported) |
| Lead Wire | W (Lead Wire w/Connector, 5-core, 2 m Lead Wire, Waterproof) |
| Operation Manual | Operation Manual, w/o Calibration Certificate |
| Lead time (days) | 110 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 9026202000 |
- High-Precision Digital Pressure Switches
- 3-Screen, 3-Colour Display
- Applicable fluid: air, non-corrosive gas, non-flammable gas, or general fluids
- Pressure ranges: from -0.1 to 2 MPa
- Repeatability: ±0.2 % F.S.
- Output: IO-Link, NPN/PNP or Analogue (Voltage/Current)
- Select response time: from less than 1.5 ms to 5 s.
- M12 connector available
- IP40 or IP65
- Consumption: 35 mA or less.
Key features
- 3-Screen Display High-Precision Digital Pressure Switch for General Fluids.
- 2 outputs + Analog output (Voltage/Current).
- IP65.
- Applicable fluid: Fluid that will not corrode stainless steel 630 and 304.
- Pressure range: -0.1 to 2 MPa.
- Repeatability: ±0.2 % F.S.
- Response time: 1.5 ms or less.
- Consumption: 35mA or less.
