SMC · Regulators
IR2220-F02B-A
excl. VAT · €102,16 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | IR2220-F02B-A |
|---|

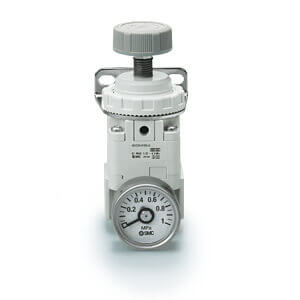

PRECISION REGULATOR
Repeatability: ±1 % F.S. 3 sizes with 3 set pressure ranges: 0.005 to 0.2 MPa; 0.01 to 0.4 MPa; 0.01 to 0.8 MPa. Air consumption: bleed air "0". Maximum flow range: 5000 l/min. Port sizes: from 1/8 to 1/2. Standard options: bracket; pressure gauge.
Features
- Lightweight.
- Addition of bottom and front exhaust.
- Repeatability ±1.0 % (full span).
- High flow rate.
- Max. supply pressure: 1.0 MPa.
Specifications
- Part number: IR2220-F02B-A
- Item number: 01461805
- Body Size: 2
- Set pressure: 2 (0.02 to 0.8 MPa)
- Exhaust Direction: 0 (Bottom Exhaust)
- Thread: F (G)
- Port Size: 02 (1/4)
- Option: B (With bracket)
- Semi-standard: None
- Lead time: 20 days
- Country of origin: JP
