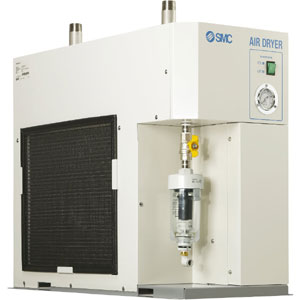

IDFA60/70/80/90, Refrigerated Air Dryer | IDFA70-23-FV

REFRIGERATED AIR DRYER

Longer lifetime of the air system High corrosion resistance with the use of stainless steel heat exchanger Efficient drying with low pressure drop Compactness Easy maintenance.

Features

• Air flow capacity up to 960 m³/h
• Ambient temperature: Max. 45 °C
• Inlet air temperature: Max. 65 °C
• Compliant with F-Gas regulation
• Power supply voltage: single-phase 230 VAC (50 Hz).

Specifications

• Part number: IDFA70-23-FV
• Item number: 02913474
• Medium Air Pressure: None
• Anti-corrosive Treatment: None
• Terminal Block: None
• Timer-type solenoid valve: V (w/Time Type Solenoid Valve w/Auto Drain; Max. Operating Pressure 1.6 MPa)
• Size: 70
• Refrigerant: F (Low GWP Refrigerant)
• Earth Leakage Breaker: None
• Cool Compressed Air Output: None
• Chinese Labels and a Chinese Operation Manual: None
• Lead time: 29 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Operation manual
• Operation manual 2
