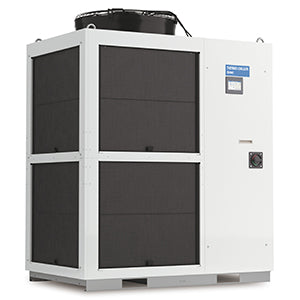

- Circulating Fluid Temperature Controller. Water or Air-cooled
- Cooling capacity: From 1.1 to 38 kW (50 Hz)
- Temperature stability: ±0.1 °C to ± 1 °C
- Set temperature range: -10-45 °C
- With heating function and self-diagnosis
- Serial communication
- Compact and lightweight.
Key features
- Cooling capacity: 38 kW
- Heating capacity: 8 kW
- Temperature stability ±0.1 °C
- Waterproof specification - IPX4
- Set temperature range: 5 to 35 °C
- Max. ambient temperature: 45 °C
- Applicable to deionised water piping, non-copper materials used.
Specifications
- Cooling Method: A (Air-cooled Refrigeration)
- Pipe Thread: F [G (w/Rc-G Conversion Fitting)]
- Power Supply: 46 [3-phase 380 to 415 VAC (50/60 Hz); 3-phase 460 to 480 VAC (60 Hz)]
- Option 1: None
- Option 2: None
- Option 3: None
- Option 4: None
Additional information
- Part number: HRS400-AF-46
- Lead time (days): 120
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8418690091
