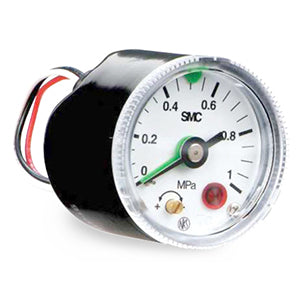

GP46, Pressure Gauge w/Switch (O.D. 42.5) | GP46-10-02-Q

GAUGE

SMC offers a variety of pressure gauges including general purpose, oil-free/external parts copper-free with limit indicator, clean series and a pressure gauge with a pressure switch. Pressure ranges vary from 0 to 1.5MPa, depending on the selected gauge. Panel mounting is possible.

Features

• Pressure gauge with built-in switch
• Equipped with a light for verifying operation
• Equipped with a limit indicator
• Optional cover ring assembly and 3m lead wire length
• Pressure range 0 to 1.0 MPa

Specifications

• Part number: GP46-10-02-Q
• Item number: 00306620
• Display Pressure: 10 (1.0MPa)
• Connection Thread: 02 (R 1/4)
• Indicator Light: None
• Attachment: Without Cover ring assembly
• Option: Q (CE Marked)
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
• Installation manual
• Installation manual 2
• CE certificate
• CE certificate 2
