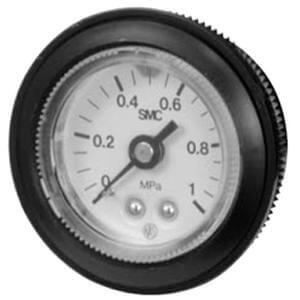

G(A)46, Pressure Gauge, w/Limit Indicator & Cover Ring Assy (O.D. 42) | G46-10-02M-C

PRESSURE GAUGE

SMC offers a variety of pressure gauges including general purpose, oil-free/external parts copper-free with limit indicator, clean series and a pressure gauge with a pressure switch. Pressure ranges vary from 0 to 1.5MPa, depending on the selected gauge. Panel mounting is possible.

Features

• General purpose gauge w/limit indicator Back or vertical side thread Indication precision: ±3% F.S. (full span)

Specifications

• Part number: G46-10-02M-C
• Item number: 00234163
• Pressure Gauge: G46 (ø42 Outside Diameter, Back Side Thread)
• Display Pressure: 10 (1.0MPa)
• Connection Thread: 02M (R 1/4, M5 Female)
• Attachment: C (Clear Cover w/o Protrusion, is not Removable)
• Option: None
• Lead time: 5 days
• Country of origin: JP

Documents

• Catalogue
• CAD model (STEP)
