Request a quote
SMC · Industrial Filters
FQ1011N-10-M005N-B
excl. VAT · €968,51 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FQ1011N-10-M005N-B |
|---|---|
| Element Size | 1 (L250) |
| Housing O-Ring Material | N (NBR) |
| Port Size | 10 (1) |
| Element | M005N (SUS304 5 Micron NBR) |
| Option | B (Bracket) |
| Made to Order | None |
| Lead time (days) | 28 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8421298090 |

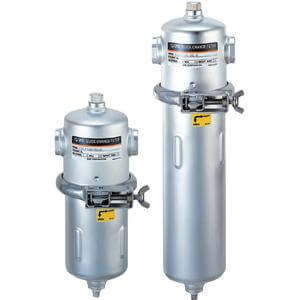

- Quick-change filter
- Fluid: Coolant, weak alkaline cleaning solvent, cutting oil, industrial water
- Nominal filtration rating: 0.2 to 105 μm
- No tools required, easy element replacement.
Key features
- Nominal filtration rating: 0.2 to 105 μm.
- Operating pressure: Max. 1.0 MPa.
- Fluid temperature: Max. 80 °C.
- Port size: 1/2 to 1.
Documents
