SMC · Industrial Filters

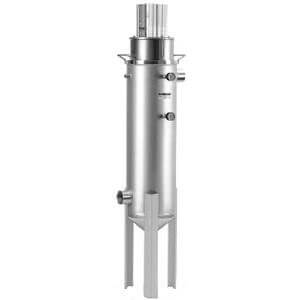

FN4102V-20-S005
excl. VAT · €16.158,83 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FN4102V-20-S005 |
|---|---|
| Seal Material | V (FKM) |
| Filtration | 005 (5 µm) |
| Pressure Gauge | None (With Plug) |
| Lead time (days) | 120 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8421298090 |
- Low-maintenance Filter
- Fluid: Coolant, weak alkaline cleaning solvent, cutting oil, industrial water
- Flow rate: Up to 250 l/min
- Nominal filtration rating: 5, 20 μm
- Automatic Cleaning.
Key features
- With four elements.
- Flow rate: Up to 250 l/min.
- Nominal filtration rating: 5, 20 μm.
- Operating pressure: Max. 1.0 MPa.
- Fluid temperature: Max. 80 °C.
Documents
More part numbers in this series
FN1101N-10-S005€4.105,92FN1101N-10-S005-X35€5.252,67FN1101N-10-S005G€4.133,31FN1101V-10-S005€4.180,66FN1101V-10-S005G€4.208,07FN1102N-10-S005€5.154,50FN1102N-10-S005G€5.181,89FN1102V-10-S005€5.229,24FN1102V-10-S005G€5.256,70FN4102N-20-S005€13.307,19FN4102N-20-S005G€13.359,71FN4102N-20-S020€13.307,19FN4102N-20-S020G€13.359,71FN4102V-20-S005This itemFN4102V-20-S005G€13.518,23
