SMC · Industrial Filters
FGFS1A-20-E010B
excl. VAT · €2.881,54 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FGFS1A-20-E010B |
|---|---|
| Material | S (Vessel: Stainless Steel 304; Gasket, O-ring: NBR) |
| Number of Elements | 1 pc (FGF*1) |
| Element Size | A (ø190 x ℓ440) |
| Port Size | 20 (Rc2, FGF*1) |
| Nominal Filtration Accuracy | 10 μm |
| Suffix | B (1 Element Included) |
| Pressure Gauge | w/o Pressure Gauge, w/Plug (or N/A for Units w/3, 5 Elements Included) |
| Option | None |
| Made to Order | None |
| Lead time (days) | 32 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8421298090 |

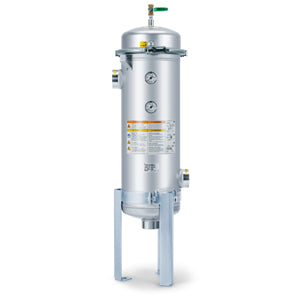

- Bag filter
- Fluid: Coolant, weak alkaline cleaning solvent, cutting oil, industrial water
- Flow rate up to 400 l/min
- Nominal filtration rating: 5, 10, 25, 50, 100 μm
- Optimum for large-flow filtration.
Key features
- Nominal filtration rating: 5, 10, 25, 50, 100 μm.
- Flow rate up to 400 l/min.
- Operating pressure up to 0.5 MPa.
- Fluid temperature: Max. 80 °C.
