SMC · Industrial Filters
FGDTA-06-T020-B
excl. VAT · €652,37 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | FGDTA-06-T020-B |
|---|---|
| Element Length | A (ℓ250) |
| Accessory | B (Bracket) |
| Element Type | T [Fiber (Honeycomb), Polypropylene Material] |
| Port Size | 06 (3/4 Rc) |
| Element Seal Material | w/o Sealant |
| Material | T (SCS14 Cover, SS 316 Case, Fluororesin Gasket/O-ring, Fluororesin Seal) |
| Nominal Filtration Accuracy | 20 μm |
| Minimum order quantity | 0 |

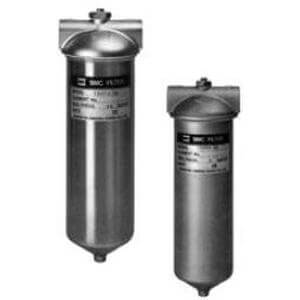

- Vessel series
- Fluid: Water, coolant, water for cleaning, industrial water, coolant, oil, nitrogen gas, carbon dioxide, air (dry)
- Flow rate up to 60 l/min
- Nominal filtration rating: 0.5 to 120 μm
- Suitable for low flow rate.
Key features
- Nominal filtration rating: 0.5 to 120 μm.
- Flow rate up to 60 l/min.
- Operating pressure up to 1 MPa.
- Fluid temperature: Max. 80 °C.
