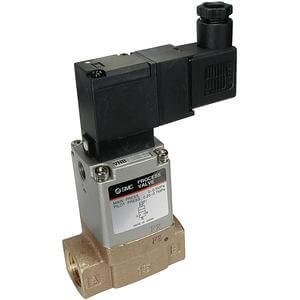

SMC · Process Valves
EVNB214A-F10A-5D-Q
excl. VAT · €159,07 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | EVNB214A-F10A-5D-Q |
|---|---|
| Area Code | E (Europe) |
| Size | 2 [ø15(ø11)] |
| Valve Type | 4 [NC (Operating Pressure 1MPa)] |
| Sealant | A (NBR Seal) |
| Body Material | Standard (Bronze Body) |
| Pilot System Option | Standard |
| Thread | F (G(PF)) |
| Port Size | 10A (3/8) |
| Voltage | 5 (24VDC) |
| Lead Wire | D (DIN Terminal) |
| Manual Override | Non-locking Push Style |
| Bracket | None |
| CE Marked | Q (CE Marked) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8481209090 |
- Model VNB for flow control permits application with a wide variety of fluids such as air, water, oil, gas and vacuum.
Key features
- Process valve series VNB
- External pilot solenoid
- Orifice size: 7mm to 50mm
- Port size: 1/8 to 2 Rc(PT)
- Seal material: NBR, FKM, EPR
More part numbers in this series
VNB201B-F15A-X392€147,15VNB201C-F15A-X400€112,79VNB202C-F15A-X400€112,79VNB204B-F15A-X353€1.722,48EVNA201A-F15A€86,97EVNA102A-F8A€63,11EVNA701A-F50A€322,47EVNA101A-F8A€63,11VNB601A-F40A€225,78VNB404B-F25A€153,48VNB711A-50A-5DZ-Q€367,27VNB504A-F32A€242,47VNB404B-25A€153,48VNB304B-F20A€127,03VNB214A-F15A-5DZ-Q€136,74
