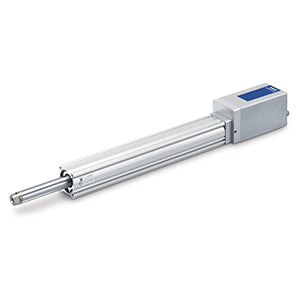

Integrated Controller Rod Type – EQY#H | EQY25DHA-400-B6

All-in-one, integrated controller and actuator with high performance specifications

Features

• IO-Link compatible
• Body size: 16, 25 and 32 mm
• Ball screw actuation type
• Stroke: 30 to 500 mm
• Horizontal work load: up to 100 kg
• Vertical work load: up to 46 kg
• Speed: up to 900 mm/s
• Horizontal acceleration: up to 10000 mm/s²
• Vertical acceleration: up to 5000 mm/s².

Specifications

• Part number: EQY25DHA-400-B6
• Article no.: 02633292
• Mounting: Ends Tapped/Body Bottom Tapped
• Interface (Parallel Input/Output/Communication Protocol): 6 (PNP)
• Stroke: 400 mm
• Rod End Thread: Rod End Female Thread
• Motor Mounting Position: D (In-line)
• Size: 25
• Motor Type: H (Battery-less Absolute, Step Motor 24 VDC)
• Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm)
• Motor Option: Without Option
• Controller Position: B (Integrated Controller)
• Lead time: 28 days
• Country of origin: JP

Documents

• Catalogue
• Datasheet
• CAD model (STEP)
• Installation manual
