SMC · Slider Types

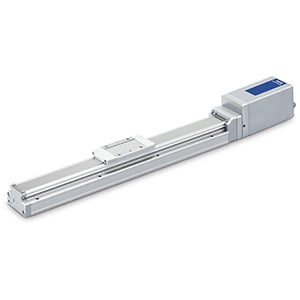

EQFS32HA-900-B6
excl. VAT · €1.629,55 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | EQFS32HA-900-B6 |
|---|
All-in-one, integrated controller and actuator with high performance specifications
Features
- IO-Link compatible
- Body size: 16, 25, 32 and 40 mm
- Ball screw actuation type
- Stroke: 50 to 1200 mm
- Horizontal work load: up to 80 kg
- Vertical work load: up to 40 kg
- Speed: up to 1200 mm/s
- Horizontal acceleration: up to 10000 mm/s²
- Vertical acceleration: up to 5000 mm/s².
Specifications
- Part number: EQFS32HA-900-B6
- Article no.: 02647740
- Interface (Parallel Input/Output/Communication Protocol): 6 (PNP)
- Stroke: 900 mm
- Motor Mounting Position: In-line
- Size: 32
- Grease Application: With
- Motor Type: H (Battery-less Absolute, Step Motor 24 VDC)
- Lead: A (Size 16: 10 mm, Size 25: 12 mm, Size 32: 16 mm, Size 40: 20 mm)
- Motor Option: Without Option
- Controller Position: B (Integrated Controller)
- Lead time: 28 days
- Country of origin: JP
Documents
