SMC · Actuator Accessories

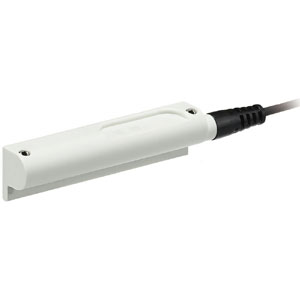

D-MP100B
excl. VAT · €426,46 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
Delivery up to 2 weeks
| Part number | D-MP100B |
|---|---|
| Measuring Range | 100 (100mm) |
| Lead Wire | B (M8-4 Pin, 0.3 m) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8536501990 |
- Actuator stroke position is detected with an analogue signal
- IO-Link compatible
- Directly slotted into the actuator groove
- Repeatability of 0.1 mm
- 4 measurement ranges
- Flexible switch output.
Key features
- Measuring range: 25mm, 50mm, 100mm and 200mm.
- Applicable Cylinder: MB, CQ2, MGP, CXSJ, CP96, C96 and C55.
- Compatible IO-Link.
- Analogue output: Voltage output (0 to 10 [V]), Current output (4 to 20 [mA]).
- Analogue output can be reversed.
- Setting is available by simply touching the touch pad.
- Lead wire connection: Separate line, M8-4pin and M12-4 pin.
