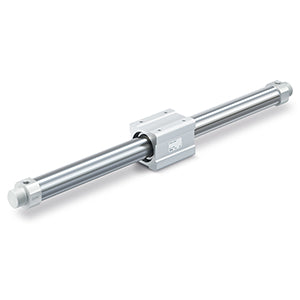

CY3B-Z, Magnetically Coupled Rodless Cylinder, Basic Type – CY3B50TF-300Z

• Magnetically coupled
• Bore sizes (mm): 6, 10, 15, 20, 25, 32, 40, 50, 63
• Basic type
• Strokes up to 5000 mm.

Key features

• Bore sizes (mm): 6, 10, 15, 20, 25, 32, 40, 50, 63
• Strokes up to 5000 mm
• Holding force up to 2256 N
• Piston speed 50 to 500 mm/s
• Rubber bumper cushion.

Specifications

• Bore Size: 50 mm
• Stroke: 300
• Port Thread: TF (G Thread)

Additional information

• Part number: CY3B50TF-300Z
• Lead time (days): 28
• Minimum order quantity: 1
• Country of origin: JP
• TARIC code: 8479899790

Documents

• Catalogue (PDF)
• CAD model
• Operation manual
