SMC · Rodless Actuators

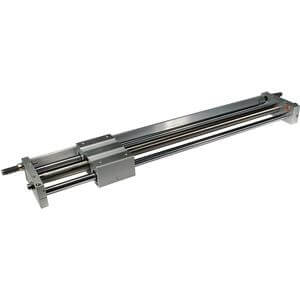

CY1L6H-200
excl. VAT · €640,56 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
Total
| Part number | CY1L6H-200 |
|---|---|
| Bore Size | 6mm |
| Port Thread | Rc (or M Thread for 6 to 15 Bore) |
| Magnetic Holding Force | H (Large Holding Force) |
| Stroke | 200 |
| Adjuster | Adjuster Bolt |
| Auto Switch | None |
| Lead Wire or Prewired Connector | 0.5m (Or None in the Case of No Switch) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | CZ |
| TARIC code | 8479899790 |
- With no external leakage, the CY series can be used in many diverse environments. Magnetically coupled cylinders have a wide range of applications, and save mounting space. Loads and moments are possible through the use of integrated guides. A variety of guides can be used to achieve the necessary accuracy or allowable moment needed for your application. CY is available in 9 bore sizes, from 6mm to 63mm with standard stokes up to 1000mm. The 5 different model variations offer widest application choice. Auto switches are integrated as standard.
Key features
- Slider style: ball bushing bearing
- Bore sizes: 6, 10, 15, 20, 25, 32, & 40 (mm)
- Strokes from 50mm through 1000mm
- Available with high or low magnetic holding force
- Available with shock absorbers
- Auto-switch capable
