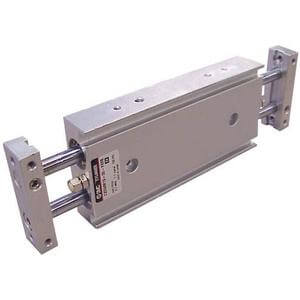

- Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Key features
- Dual rod cylinder: double rod
- Bore sizes: 6, 10, 15, 20, 25, 32 (mm)
- Strokes from 10mm through 100mm depending upon bore size
- Variety of switches and a variety of lead wire lengths
Specifications
- Bore Size: 25 mm
- Stroke: 40 mm
- Number: 2 pcs. [Or None in the Case of No Switch]
- Auto Switch: No Switch
- Thread: TF (ø25,ø32 Bore: G 1/8)
Additional information
- Part number: CXSWM25TF-40
- Lead time (days): 21
- Minimum order quantity: 1
- Country of origin: JP
- TARIC code: 8479899790
