SMC · Guided Actuators

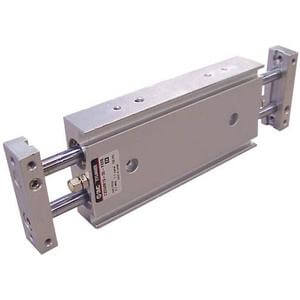

CXSWM20-40
excl. VAT · €466,03 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CXSWM20-40 |
|---|---|
| Thread port | M5 (Rc (PT) for sizes 25 to 32) |
| Bore Size | 20mm |
| Stroke | 40mm |
| Auto Switch | No Switch |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Lead time (days) | 5 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Key features
- Dual rod cylinder: double rod
- Bore sizes: 6, 10, 15, 20, 25, 32 (mm)
- Strokes from 10mm through 100mm depending upon bore size
- Variety of switches and a variety of lead wire lengths
