SMC · Guided Actuators

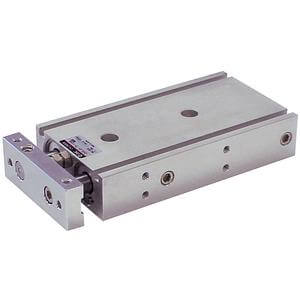

CXSM32TF-15
excl. VAT · €371,03 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CXSM32TF-15 |
|---|---|
| Bore Size | 32 mm |
| Stroke | 15 mm |
| Lead Wire or Prewired Connector | 0.5m [Or None in the Case of No Switch] |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Lube-retainer | Without Stable Lubrication Function |
| Auto Switch | No Switch |
| Thread | TF (ø25,ø32 Bore: G 1/8) |
| Minimum order quantity | 0 |
- Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Key features
- Dual rod cylinder with slide bearing
- Bore sizes: 6, 10, 15, 20, 25, 32 (mm)
- Strokes from 10mm through 100mm depending upon bore size
- Variety of switches and a variety of lead wire lengths
