SMC · Guided Actuators

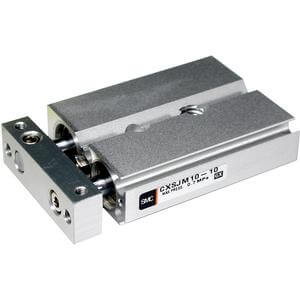

CXSJM32TF-40
excl. VAT · €452,42 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CXSJM32TF-40 |
|---|---|
| Bore Size | 32 mm |
| Stroke | 40 mm |
| Lead Wire or Prewired Connector | 0.5m [Or None in the Case of No Switch] |
| Piping | Standard Porting |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Option | None |
| Auto Switch | No Switch |
| Thread Type | TF (G) |
| Bearing Style | M (Slide Bearing) |
| Lead time (days) | 26 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8479899790 |
- Series CXS is available in six bore sizes and stroke lengths up to 100mm. This series is very compact and has a very accurate non-rotating specification. It is suited for accurate pick-and-place applications or light duty material handling. The CXS can be used with either reed or solid state switches. Available in clean room versions.
Key features
- Dual rod cylinder, compact type
- Slide bearing or ball bushing bearing
- Bore size (mm): 6, 10, 15, 20, 25, 32
- Standard strokes (mm): 10, 20, 30, 40, 50, 75, 100
- Auto switches available
- Made to Order additionally released.
