SMC · Linear Actuators

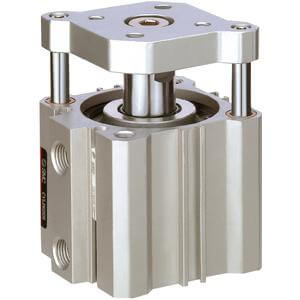

CQMB32TF-25
excl. VAT · €111,06 incl. 20% VAT (BG)
Free delivery in BG from €80
Free delivery in the EU from €200
Genuine SMC part
| Part number | CQMB32TF-25 |
|---|---|
| Magnet | None |
| Mounting | B [Through Hole (Standard)] |
| Bore Size | Ø32 mm |
| Port Thread | TF [G] |
| Stroke | 25 |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5 m |
| Number | 2 pcs. |
| Lead time (days) | 27 |
| Minimum order quantity | 1 |
| Country of origin | CN |
| TARIC code | 8479899790 |
- The CQM is a compact cylinder integrated with a guide rod and plate. The series is available in 12, 16, 20, 25, 32, 40, 50, 63, 80 and 100mm bore sizes with the same mounting dimensions as the CQ2. The guide rod and plate allow work to be directly mounted. The CQM series offers 4 times the lateral load resistance of the CQ2K and non-rotating accuracy of ±0.2°.
Key features
- Guide rod type compact cylinder
- Bore sizes (mm): 12, 16, 20, 25, 32
- Standard strokes (mm): 5 to 100
- 4 times the lateral load resistance of the CQ2K
- Non-rotating accuracy 0.2 or less
