SMC · Linear Actuators
CP96SDB50-80CW
excl. VAT · €197,84 incl. 20% VAT (BG)
Free delivery from €200
Free delivery from €200
Genuine SMC part · official SMC partner
VAT invoice, pay by card or bank transfer
Delivery up to 2 weeks
Need volume pricing or a special version? Request a quote →
| Part number | CP96SDB50-80CW |
|---|---|
| Magnet | D (Built-in) |
| Mounting | B (Basic) |
| Bore Size | Ø50 mm |
| Stroke | 80 |
| Rod Boot | w/o Rod Boot |
| Rod | W (Double Rod) |
| Auto Switch | No Switch |
| Lead Wire or Prewired Connector | 0.5m [Or None in the Case of No Switch] |
| Number | 2 pcs. [Or None in the Case of No Switch] |
| Rod End Options | None |
| Temperature Resistance | None |
| Heavy Duty Scraper | None |
| Tie Rod | None |
| Fluororubber Seal | None |
| Coil Scraper | None |
| Made of Stainless Steel (-XC68) | None |
| Made of Stainless Steel (-XC65) | None |
| Lead time (days) | 6 |
| Minimum order quantity | 1 |
| Country of origin | JP |
| TARIC code | 8412310090 |

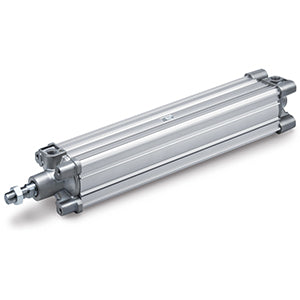

- ISO 15552 Profile Body Cylinder.
- Bore sizes (mm): 32, 40, 50, 63, 80, 100, 125.
- Strokes up to 2000 mm.
- Cylinder variations: Non-rotating, with lock unit, ATEX.
Key features
- Double acting, standard type, single or double rod with Air cushion on both ends and Bumper cushion
- Bore sizes (mm): 32, 40, 50, 63, 80, 100
- Standard stroke up to 2000mm
- Auto switch capable
